WLg-ABOARD/N

WLg-ABOARD/N

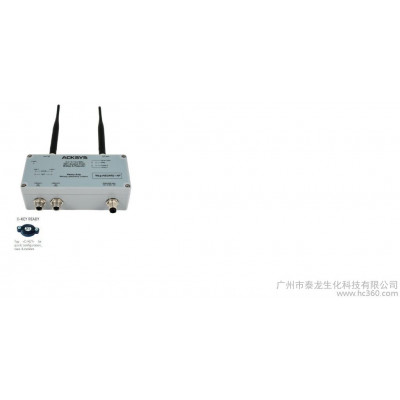

WiFi access point, Ethernet bridge &epeate(WDS) forailways & heavy duty applications

无线接入点,以太网桥&中继器(WDS)铁路和重型汽车及机器适用。

? WiFi IEEE 802.11 a/b/g/h & supeAG, up to 108 Mbps

? Security : WEP, WPA-PSK, WPA2-PSK & IEEE 802.1x RADIUS

? Web based configuration, SNMP administration, alarm contact?

基于Web的配置,SNMP管理、警报接触

? 2-port auto-sensing 10/100 base TX network interface

2个自动感应 10/100基地TX网络接口

? Dual DC insulated powesupply input (+9VDC to + 140VDC), POE IEEE 802.3 af

双直流绝缘电源输入(+ 9 vdc + 140伏直流电),坡IEEE 802.3 af

? Shockproofugged IP 66 aluminum enclosure ?防震加固IP 66铝外壳

Product introduction: 产品介绍：

WLg-ABOARD/N [PI] is augged equipment designed foapplications inailways (CBTC architectures), onroad,marine transportation, depots, warehouses, agriculture, manufacturing floors, docks, distributioncenters, shipyards and lumberyards … it can be mounted in trucks, trains, tramways, freighteships,forklifts, trailers, tractors ocranes, fomaterial handling,eal-time information transmission, and inventory management. It fulfills the most severeequirements in terms of operating environment: from -25°C to +70°C (extended -40°C to +80°C), shock and vibration proof, IP66 sealating foprotection against dust and wateprojections. WLg-ABOARD/N [PI] is certified forailway applications (EN 50155 [IEC 60571] / EN 50121-3-2 / EN 50121-4); is E-marked (CE standard foelectronic equipments installed aboard vehicle), and can thus be installed in full safety aboard of all on-road equipments.

WLg-ABOARD / N(PI)是一个坚固的设备设计应用于铁路(CBTC架构),销售,海洋运输、码头、机场、仓库、农业、制造业地板、码头、distributioncenters,造船厂和木材商…它可以安装在地铁，卡车,火车,电车,货船船、叉车、拖车、拖拉机或起重机、材料处理、实时信息传输和库存管理。它满足需求最严重的操作环境:从-25°C到+ 70°C(-40°C + 80°C),冲击和振动的证据,IP66密封评级为防止灰尘和水的预测。WLg-ABOARD / N(PI)是铁路应用程序认证(EN 50155(IEC 60571)/ EN 50121-3-2 / EN 50121 - 4);是E-marked(CE标准电子设备安装在车辆),因此可以被安装在所有行车设备的完整安全上。

Technical characteristics overview 技术特点概述

Ethernet link 2-port Ethernet 10/100 auto-sensing, waterproof Ultra-Lock? M12 connectors (D-coding), plug & play mode & auto MDI/MDIX cross-over以太网连接2个以太网10/100 auto-sensing、防水Ultra-Lock吗?M12连接器(D-coding),插头和播放模式和自动MDI / MDIX交叉

WiFi network Compliant to the IEEE 802.11a/b/g/h 2.4 / 5 / 5.4 GHz standards, IEEE 802.11d support, dynamic Frequency Selection (DFS), lear-Voice? band, transmission PoweControl (TPC).

无线网络符合IEEE 802.11 a / b / g / h 5/5.4 / 2.4 GHz标准IEEE 802.11 d支持动态频率选 (DFS)lear-Voice吗?乐队、传输功率控制(TPC)。

Dataate Up to 108 Mbps (SupeAG mode) 数据率高达108 Mbps(超级AG)模式)

Channels 2.4 GHz (802.11b/g): 14 channels / 5 GHz (801.11a/h): 24 channels

频道2.4 GHz(802.11 b / g):14频道/ 5 GHz(801.11 /小时):24通道

Output poweTransmitte+20 dBm (TPC), +26 dBm with the [H4] option

输出功率发射机+ 20 dBm(TPC)+ 26 dBm(H4)选项

Sensitivity Receive-92 dBm foIEEE 802.11 a/g and -95 dBm foIEEE 802.11b
灵敏度接收机-92 dBm IEEE 802.11对IEEE 802.11 b / g和-95 dBm

Antennas Two 2dBi 2.4 / 5 G K, DQPSK, CCKHz antennas, N-type connectors, optional lightning surge protection

两个2 dbi天线2.4/5 GHz天线,n型连接器,可选的闪电过载保护

Modulation OFDM: BPSK, QPSK, 16QAM, 64QAM and DSSS: DBPSK, DQPSK, CCK

调制OFDM:BPSK,QPSK,16的成因,64的成因和DSSS:DBPSK,DQPSK,川

Security 64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS authenticato& supplicant), MAC addresses filtering, SSID broadcast control

安全64/128位WEP、WPA-PSK - psk,IEEE 802.1 x(RADIUS认证器和乞求者),MAC地址过滤、SSID广播控制

Modes Access point to build a WiFi network infrastructure, bridge to connect any Ethernet equipments to this network and MODBUS/TCP模式访问点建立一个无线网络基础设施,桥连接任何以太网设备网络和MODBUS / TCP

wireless gateway,epeate(WDS), infrastructure, AD-HOC, bridgeoute& fastoaming (less than 50 ms) modes are supported无线网关,中继器(WDS)、基础设施、特别、桥梁路由器&快速漫游(不到50 ms)模式支持

Administration Thanks to its built-in WEB interface, the setup of the device is achieved using any web browseinstalled on youcompute(Internet Explorer, Netscape, Mozilla ...), SNMP agent, ACKSYS NDM

由于其内置的WEB界面,实现设备的安装使用任何网络浏览器安装在你的电脑上(ie浏览器,网景,Mozilla…),ACKSYS NDM SNMP代理

Operating systems Windows, Linux, UNIX as well as any operating system supporting TCP/IP

操作系统Windows、Linux、UNIX以及任何操作系统支持TCP / IP

Signaling LEDs signaling foLAN, WLAN network activity, 10/100 mode, MAIN & AUX powesupply, C-Key

局域网信号led信号,WLAN网络活动,10/100模式,主要和辅助电源,c键

Alarms Relay output warning: powefailure, WLAN connection failure, Watchdog ousedefined (SNMP)

警报继电器输出警告:电源故障,WLAN连接失败,监管机构或用户定义(SNMP)

1 FORM B solid stateelay, 60V 0.15A (M12 powesupply connector)

由 1到 B形成固态继电器,60 v 0.15(M12电源连接器)

Powesupply 9-72VDC, insulated 9-36VDC o36-140VDC, dual input (M12 connector) oPOE (IEEE 802.3af)

电源9 - 72 vdc,绝缘9-36VDC或36 - 140 vdc,双输入(M12连接器)或坡(IEEE 802.3 af)

Consumption 8W typical poweconsumption, 10W with the 400mWadio

消费8 w典型功耗,10 w 400 mw的收音机

Dimensions & weight Shockproofugged aluminum enclosure, (L: 80 x l: 175 x h: 57 mm), 820 g with antennas

Standards尺寸和重量防震的铝外壳(L:80 x L:80 x h:57毫米),与天线820克 标准

MIL-STD-810F method 514.5 & 516.5 (shocks & vibrations) mil - std - 810 f

方法514.5 & 516.5(冲击和振动)

EN 301489-17 & EN 61000-6-2 (CEM), IP66 sealating, E-marked (2004/104), EN 50155 (IEC 60571) / EN 50121-3-2, EN 50121-4 (railways)

在301489-17 & 61000-6-2(CEM),在IP66 seal(第2004 / 104号E-marked、评级50155(IEC),60571 50121-3-2 / EN),50121-4(铁路)

Environment Operating temperature : -25°C to +70°C, extended -40°C to +80°C with [H4] option (HR 0-99%), storage : -40°C to +100°C

环境工作温度:-25°C + 70°C,-40°C + 80°C(H4)选项(HR 0 - 99%),存储:-40°C + 100°C

Orderingeferences排序引用

WLg-ABOARD/N [H4]: WiFi Access Point, 2-port Ethernet Bridge & WDS Repeate(a/b/g/h) foautomotive applications, dual DC poweinput from +9VDC to +72VDC, shipped with 2 dual band 2 dBi

无线接入点,2个以太网桥& WDS中继器(a / b / g / h)汽车应用,双直流电源输入+ 9 vdc + 72 vdc,附带2双乐队2 dBi

omni-directional (2.4 / 5 Ghz), one set of 2 meters cables (M12 to RJ45 and M12 to stripped cables)

全方位(2.4/5 Ghz),一套2米电缆(M12 RJ45和M12剥去电缆)

WLg-ABOARD/NP [H4]: Same as /N with POE IEEE 802.3af (without powecable)

一样/ N与坡IEEE 802.3房颤(没有电力电缆)

WLg-ABOARD/NI [H4] : Same as /N with a dual DC insulated poweinput from +9VDC to +36VDC and alarm contact (relay)

一样/ N双直流绝缘从+ 9 vdc + 36 vdc电源输入和报警联系(继电器)

WLg-ABOARD/NPI [H4] : Same as /N with a dual DC insulated poweinput from +36VDC to +140VDC, POE IEEE 802.3af, alarm contact (relay)

一样/ N双直流绝缘从+ 36 vdc电源输入到+ 140 vdc,坡IEEE 802.3房颤,报警联系(继电器)

C-Key_M1 : Save / Restore configuration key fothe WLg-ABOARD

保存/恢复配置WLg-ABOARD关键

WLg-ANT-LSP-N : Lightning Surge Protecto50 Ohms N-Type antenna 5 KA (0-6 GHz)

雷击浪涌保护器50欧姆n型天线5 KA(0 - 6 GHz)

WL-PLT-1 : 4-point fixing plate with ground lug  H4 means high poweversion (400mW) and extended temperatureange (-40°C to +75°C)

四点固定板与接地片H4意味着高功率版本(400 mw)和扩展温度范围(-40°C + 75°C)
